Available as connectors or sets with cable

UFO DisplayPort Product Sheet

Connectors Only:

• Part #: UFO-DP-TXRX

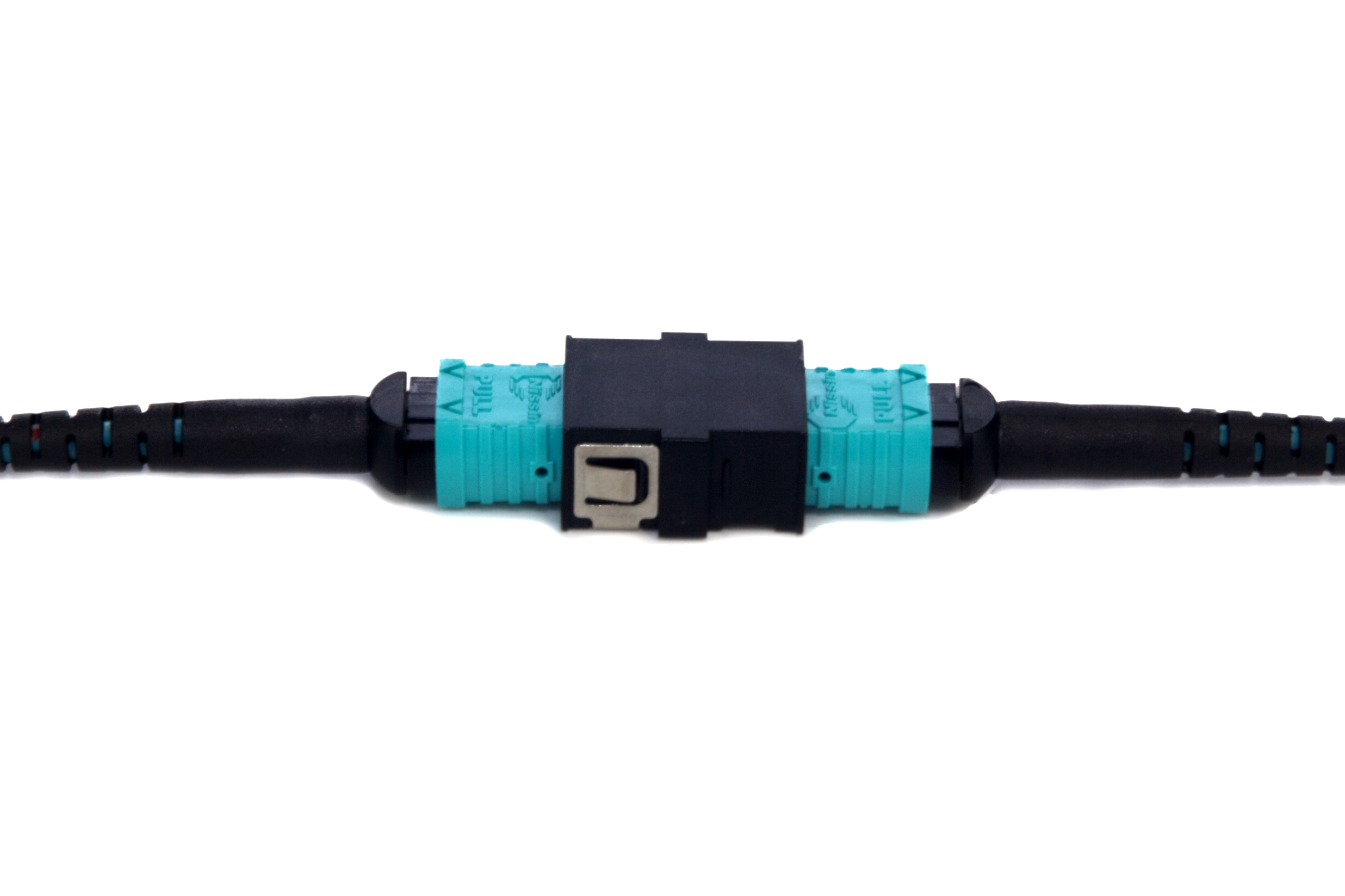

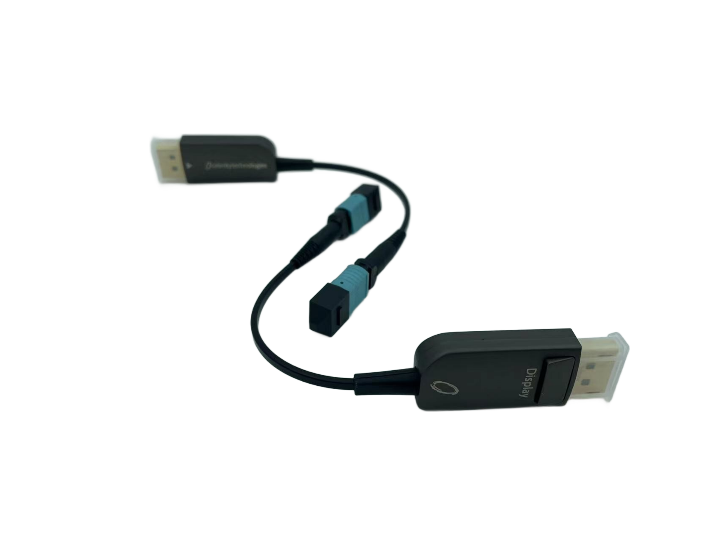

• Pair of Transmit & Receive DisplayPort Detachable Connectors w/Couplers.

Connector & Cable Sets:

• Part #: UFO-DP-35P

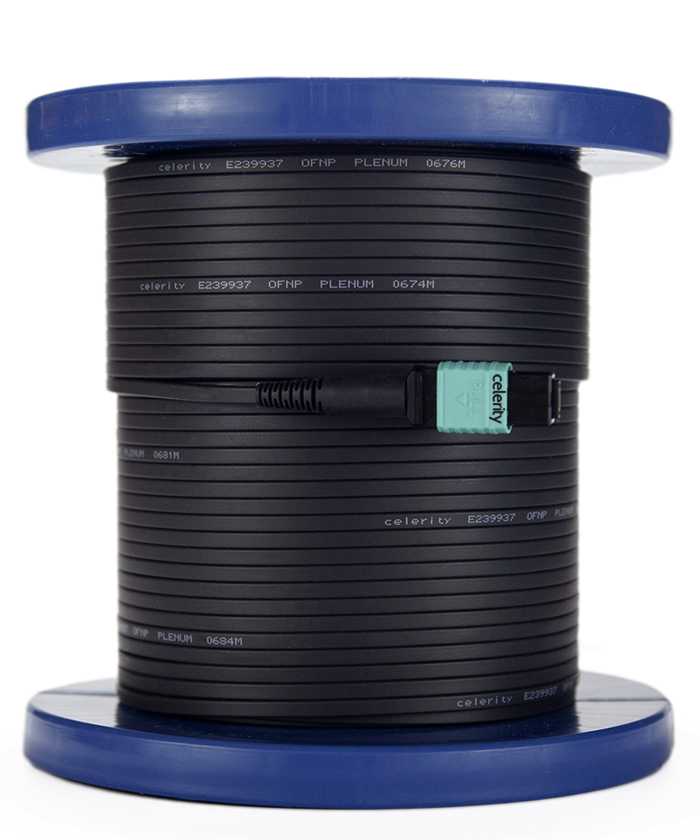

• 35' bi-directional fiber optic cable.
• Part #: UFO-DP-40P
• 40' bi-directional fiber optic cable
• Part #: UFO-DP-50P
• 50' bi-directional fiber optic cable
• Part #: UFO-DP-60P
• 60' bi-directional fiber optic cable
• Part #: UFO-DP-80P
• 80' bi-directional fiber optic cable
• Part #: UFO-DP-100P
• 100' bi-directional fiber optic cable
• Part #: UFO-DP-130P
• 130' bi-directional fiber optic cable
• Part #: UFO-DP-160P
• 160' bi-directional fiber optic cable
• Part #: UFO-DP-200P
• 200' bi-directional fiber optic cable
• Part #: UFO-DP-500P
• 500' bi-directional fiber optic cable
• Part #: UFO-DP-1000P
• 1000' bi-directional fiber optic cable

Please contact us directly for a Cable Length that is not on this Parts List.

Specifications

• Data rate 32.4 Gbps
• Resolution up to 8Kx4Kk with use of 4:2:0 or VESA Display Stream Compression
• Supported features
• DisplayPort 1.4
• HDCP 1.4/2.2/2.3
• HDR
• BT.2020
• LED status indicator at T & R connectors, powered LED verifies connectivity
• Power T: 0.5W R: 0.5W; 5V DC
• Temperature / Humidity -04ºF - 158ºF (-20ºC - 70ºC) / 0% - 90% RH
• Fiber optic cable pull strength - 60 pounds
